This page provides information and details about Sound Library PCM Cards suitable for the Roland U-110, U-20 Keyboard and U-220 Sound Module.

The Roland U-110, U-20 and U-220 Tone set can be expanded by employing the PCM slots provided. Four slots are available on the U-110 and two slots on the U-20 and U-220. Suitable Sound Library PCM Cards include the SN-U110 series (a total of 15 PCM cards) and SN-MV30-S1 series.

Timbres and Patches created using the additional Tones available on these PCM Cards will require that the relevant PCM card is installed whenever those Timbres/Patches are to be used/accessed. The PCM Card Tone data is not copied/stored permanently in the U-20 and U-220 memory.

Please be aware that some PCM Cards offered for sale online may no longer be functional.

It is worth asking the vendor whether they can verify that the card being offered for sale actually works. If the provided photo shows a beaten up card, pass it by - you can't fix these if they are broken or have corrupted data.

Prices for Sound Library PCM cards can vary dramatically from around AUD $40 (seems to be average) up to AUD $120 per card.

Given that a U-220 can be had for under $200, that makes the cost of these Sound Library cards appear particularly steep. With the vastly better tech available today, it is very hard to justify the expense of these cards just to pad out the existing tone set.


Expanded / Content Information is available for the following cards:

Important:
I have not yet heard the samples contained on these cards, so there is no point asking what I think of them or which I consider to be the best and/or better value.


Please Note: The PCM samples (Tones) on cards SN-U110-08 and SN-U110-09 are already included on the U-20, U-220 and D-70's internal ROM.

List of SN-U110 PCM ROM Cards
SN-U110-01 Pipe Organ and Harpsichord 6 Harpsichords, 6 Standard Organs,
8 Church Organs
SN-U110-02 Latin and FX Percussion 3 Latin Setup, 4 F.X. Setup, 26 Latin Percussions, 19 F.X. Percussions
SN-U110-03 Ethnic 6 Tablas, 3 Tsuzumis, 1 Hyoshigis,
2 Genders, 2 Sanzas, 4 Barafons, 3 Sitars,
3 Santurs, 9 Kotos, 2 Sicus and 3 Shanais
SN-U110-04 Electric Grand
and Clavi
8 Electric Grand Pianos, 4 Clavis
SN-U110-05 Orchestral Strings 3 Violins, 3 Cellos, 1 Cello/Violin,
1 Contrabass/Cello, 1 Pizzicato, 2 Harps
SN-U110-06 Orchestral Winds 6 Oboes, 5 Bassoons, 6 Clarinets,
5 Bass Clarinets, 6 French Horns, 5 Tubas,
2 Timpani
SN-U110-07 Electric Guitar 15 Jazz Guitar, 27 Overdrive Guitar,
28 Distortion Guitar, 1 Picking Harmonics

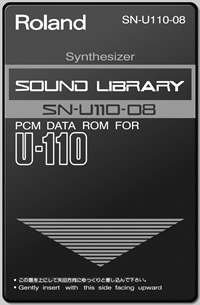

SN-U110-08 Synthesiser These Tones already in the U-20 / U-220
and D-70's internal ROM

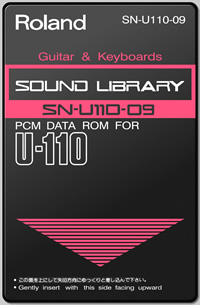

SN-U110-09 Guitar and Keyboards

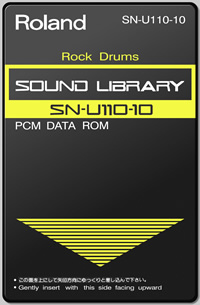

SN-U110-10 Rock Drums Not compatible with the D-70

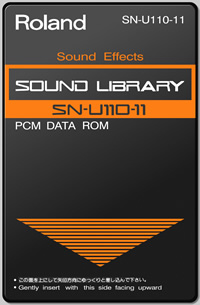

SN-U110-11 Sound Effects A variety of Sound Effects including sounds from nature

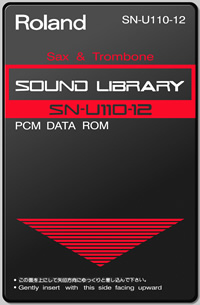

SN-U110-12 Sax and Trombone 10 Saxophones, 10 Trombones

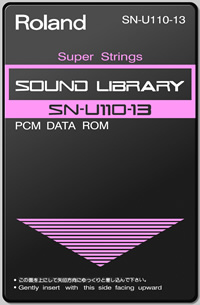

SN-U110-13 Super Strings
(From the JV-80)
12 Strings

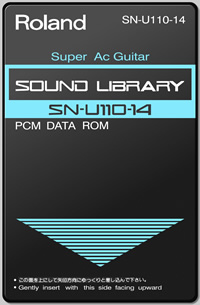

SN-U110-14 Super Acoustic Guitar
(From the JV-80)
6 Steel String Guitars, 6 Nylon String Guitars,
12-String Guitars, Harmonics, Fret Noise

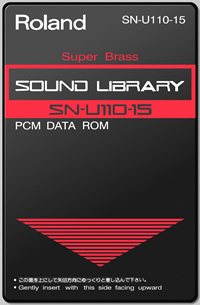

SN-U110-15 Super Brass
(From the JV-80)
3 High Brasses,3 Low Brasses,
7 Brass Combos

The SN-U110-13, 14 and 15 Stereo Sound Cards series use larger amounts of memory for their tones to provide an extremely rich sound quality. Some of the included tones were designed to be panned in stereo patches to express subtle nuances (particularly useful for emulating acoustic music).


•  SN-MV30-S1 series - SN-MV30-01 Tone List (Rhythm Section)

•
SN-MV30-S1 series - SN-MV30-02 Tone List (Orchestral)




BACK       TOP

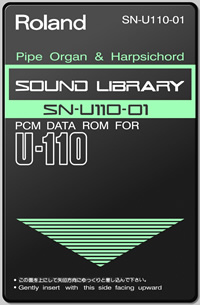

  SN-U110-01 - Pipe Organ and Harpsichord - Sound Chart
# Tone Name Tone Type Contents Split/Threshold
Harpsichord
01-01 HARPSI 1 Single Back 8' (Mellow Tone)
01-02 HARPSI 2 Detune Back 8' (Mellow Tone)
01-03 HARPSI 3 Single Front 8' (Bright Tone)
01-04 HARPSI 4 Detune Front 8' (Bright Tone)
01-05 HARPSI 5 Single Back + Front
01-06 HARPSI 6 Dual Back + 4' (Upper Octave)
Postive Organ
01-07 POSITIVE 1 Single Bright Tone
01-08 POSITIVE 2 Detune Bright Tone
01-09 POSITIVE 3 Single Middle Tone
01-10 POSITIVE 4 Detune Middle Tone
01-11 POSITIVE 5 Single Mellow Tone
01-12 POSITIVE 6 Detune Mellow Tone
Church Organ
01-13 CHURCH 1 Single Bright Tone
01-14 CHURCH 2 Detune Bright Tone
01-15 CHURCH 3 Single Middle Tone
01-16 CHURCH 4 Detune Middle Tone
01-17 CHURCH 5 Single Mellow Tone
01-18 CHURCH 6 Detune Mellow Tone
01-19 CHURCH 7 Dual Middle + Reverb
01-20 CHURCH RVB Single Reverb

* The voicing capacity or the upper range may vary with the tones you select.



BACK       TOP

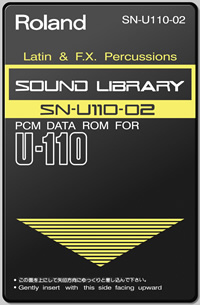

  SN-U110-02 - Latin and FX Percussion - Sound Chart
# Tone Name Tone Type Contents Split/Threshold
Latin Setup
02-01 LATIN 1 Single See Setup Chart
02-02 LATIN 2 Single See Setup Chart
02-03 LATIN 3 Single See Setup Chart
FX Setup
02-04 FX 1 Single See Setup Chart
02-05 FX 2 Single See Setup Chart
02-06 FX 3 Single See Setup Chart
02-07 FX 4 Single See Setup Chart
Latin Percussions
02-08 CONGA 1 Single open
02-09 CONGA 2 Single mute
02-10 CONGA 3 V-SW open / mute v = 100
02-11 BONGO Single
02-12 CLAVES Single
02-13 TIMBALE Single
02-14 TAMBOURINE Single
02-15 WOOD BLOCK Single
02-16 WHISTLE Single
02-17 TRIANGLE Single
02-18 BELLTREE Single
02-19 JINGLEBELL Single
02-20 VIBRASLAP Single
02-21 CASTANET Single
02-22 MARACAS Single
02-23 AGOGO 1 Single
02-24 AGOGO 2 Single
02-25 CUICA 1 Single
02-26 CUICA 2 V-SW low / high v = 100
02-27 GUIRO 1 Single long
02-28 GUIRO 2 Single short
02-29 GUIRO 3 V-SW long / short v = 100
02-30 BERIMBAU Single
02-31 SHEKELE Single
02-32 STEEL DRUM Single
02-33 LOG DRUM Single
FX Percussions
02-34 ORCH HIT Single
02-35 SIREN Single
02-36 TYPE 1 Single
02-37 TYPE 2 Single
02-38 CLOCK Single
02-39 PINBALL Single
02-40 TELEPHONE Single
02-41 SMSH GLASS Single
02-42 REZNO Single
02-43 EERIE Single
02-44 AMBIA JR Single
02-45 TEMPL BLK Single
02-46 ZING ! Single
02-47 BOING ! Single
02-48 MOD ZAP Single
02-49 INTERFACE Single
02-50 SCRATCH Single
02-51 STAKE Single
02-52 ZAPPU Single

* The voicing capacity or the upper range may vary with the tones you select.



BACK       TOP

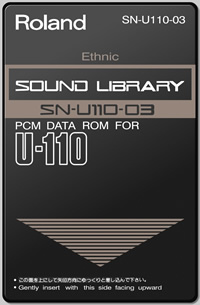

  SN-U110-03 - Ethnic - Sound Chart
# Tone Name Tone Type Contents Split/Threshold
Tabla
03-01 TABLA Single GA/TUN/NA/TE/TRKT B2/B3/B4/B5
03-02 TABLA-GA Single
03-03 TABLA-TE Single
03-04 TABLA-NA Single
03-05 TABLA-TRKT Single
03-06 TABLA-TUN Single
Tsuzumi,
Hyoshigi

03-07 TSUZUMI 1 Single
03-08 TSUZUMI 2 Single
03-09 TSUZUMI 3 Single TSUZUMI 1/TSUZUMI 2/HYOSIGI B3/B5
03-10 HYOSIGI Single
Gender
03-11 GENDER 1 Single
03-12 GENDER 2 Detune
Sanza
03-13 SANZA 1 Single
03-14 SANZA 2 Detune
Barafon
03-15 BARAFON 1 Single Soft Mallet
03-16 BARAFON 2 Detune Soft Mallet
03-17 BARAFON 3 Single Hard mallet
03-18 BARAFON 4 Detune Hard mallet
Sitar
03-19 SITAR 1 Single
03-20 SITAR 2 Detune
03-21 SITAR 3 Dual Includes the sound one octave lower
Santur
03-22 SANTUR 1 Single
03-23 SANTUR 2 Detune
03-24 SANTUR 3 Dual Includes the sound one octave lower
Koto

*keys higher than F#6 (90) contain the tremolo sound in KOTO 1-8

03-25 KOTO 1 Single Bright Tone
03-26 KOTO 2 Detune Bright Tone
03-27 KOTO 3 Single Middle Tone
03-28 KOTO 4 Detune Middle Tone
03-29 KOTO 5 Single Mellow Tone
03-30 KOTO 6 Detune Mellow Tone
03-31 KOTO 7 Single Non Decay
03-32 KOTO 8 Detune Non Decay
03-33 KOTO TREMO Single Tremolo
Sicu
03-34 SICU 1 Single
03-35 SICU 2 Detune
Shanai
03-36 SHANAI 1 Single Normal
03-37 SHANAI 2 Single Accent
03-38 SHANAI 3 V-SW Normal/Accent V=100

Many thanks to Keith for providing the SN-U110-03 card info. If you are after some more rare synth info see ... SUPER JX-10 and MKS-70 SYNTHESIZER HOMEPAGE



BACK       TOP

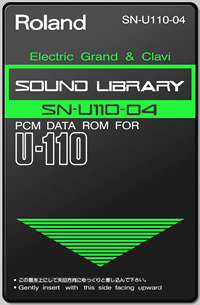

  SN-U110-04 - Electric Grand and Clavi - Sound Chart
# Tone Name Tone Type Contents Split /
Threshold
Electric Grand Piano
04-01 E.GRAND 1 V-MIX bright tone, soft & hard touch
04-02 E.GRAND 2 V-MIX middle tone, soft & hard touch
04-03 E.GRAND 3 V-MIX mellow tone, soft & hard touch
04-04 E.GRAND 4 V-MIX detuned, soft & hard touch
04-05 E.GRAND 5 Single soft touch
04-06 E.GRAND 6 Detune soft touch
04-07 E.GRAND 7 Single hard touch
04-08 E.GRAND 8 Detune hard touch
Clavi
04-09 CLAVI 1 V-MIX soft & hard touch
04-10 CLAVI 2 V-SW soft touch / hard touch v = 100
04-11 CLAVI 3 Single
04-12 CLAVI 4 Detune

* The voicing capacity or the upper range may vary with the tones you select.



BACK       TOP

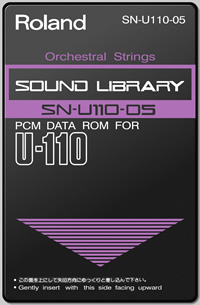

  SN-U110-05 - Orchestral Strings - Sound Chart
# Tone Name Tone Type Contents Split /
Threshold
Electric Grand Piano
05-01 VIOLIN 1 Single normal
05-02 VIOLIN 2 Single sforzando piano
05-03 VIOLIN 3 Dual
Cello
05-04 CELLO 1 Single normal
05-05 CELLO 2 Single sforzando piano
05-06 CELLO 3 Dual
05-07 CELLO/VLN Single cello / violin B3 (59)
05-08 CB/CELLO Single contrabass / cello F2 (41)
05-09 PIZZICATO Single
Harp
05-10 HARP 1 Single normal
05-11 HARP 2 Detune

* The voicing capacity or the upper range may vary with the tones you select.



BACK     TOP

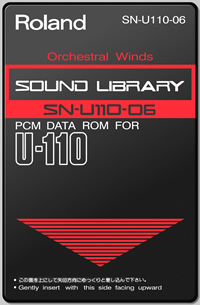

  SN-U110-06 - Orchestral Winds - Sound Chart
# Tone Name Tone Type Contents
Oboe
06-01 OBOE 1 Single Bright Tone
06-02 OBOE 2 Single Normal
06-03 OBOE 3 Single Mellow Tone
06-04 OBOE 4 Single Sforzando Piano
06-05 OBOE 5 Detune
06-06 OBOE 6 Dual
Bassoon
06-07 BASSOON 1 Single Normal
06-08 BASSOON 2 Single Mellow Tone
06-09 BASSOON 3 Single Sforzando Piano
06-10 BASSOON 4 Detune
06-11 BASSOON 5 Dual
Clarinet
06-12 CLARINET 1 Single Bright Tone
06-13 CLARINET 2 Single Normal
06-14 CLARINET 3 Single Mellow Tone
06-15 CLARINET 4 Single Sforzando Piano
06-16 CLARINET 5 Detune
06-17 CLARINET 6 Dual
Bass Clarinet
06-18 BASS CL 1 Single Normal
06-19 BASS CL 2 Single Mellow Tone
06-20 BASS CL 3 Single Sforzando Piano
06-21 BASS CL 4 Detune
06-22 BASS CL 5 Dual
French Horn
06-23 FR HORN 1 Single Bright Tone
06-24 FR HORN 2 Single Normal
06-25 FR HORN 3 Single Mellow Tone
06-26 FR HORN 4 Single Sforzando Piano
06-27 FR HORN 5 Detune
06-28 FR HORN 6 Dual
Tuba
06-29 FR.HORN 1 Single Normal
06-30 FR.HORN 2 Single Mellow Tone
06-31 FR.HORN 3 Single Sforzando Piano
06-32 FR.HORN 4 Detune
06-33 FR.HORN 5 Dual
Timpani
06-34 TIMPANI 1 V-MIX
06-35 TIMPANI 2 Single Forte

* The voicing capacity or the upper range may vary with the tones you select.



BACK       TOP

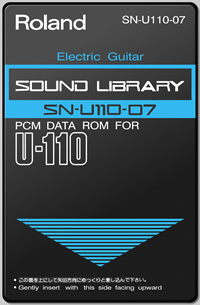

  SN-U110-07 - Electric Guitar - Sound Chart
# Tone Name Tone Type Contents Split/Threshold
Jazz Guitar
07-01 JZG SW 1 V-SW Piano - Forte v=100
07-02 JZG SW 2 V-SW Piano - Mellow / Bright v=100
07-03 JZG SW 3 V-SW Piano - Mellow / Bright v=100
07-04 JZG P Single Piano
07-05 JZG F Single Forte
07-06 JZG DT P Single Piano
07-07 JZG DT F Single Forte
07-08 JZG OCT P1 Dual Piano - Includes one octave upper
07-09 JZG OCT P2 Dual Piano - Includes one octave lower
07-10 JZG OCT F1 Dual Piano - Includes one octave upper
07-11 JZG OCT F2 Dual Piano - Includes one octave lower
07-12 JZG SW S/F V-SW Slow Attack / Fast Attack v=100
07-13 JZG COMP 1 V-SW Piano - Forte With Compressor Effect
07-14 JZG COMP 1 Single Piano With Compressor Effect
07-15 JZG COMP 1 Single Piano With Compressor Effect
Overdrive Guitar
07-16 ODG SW 1 V-SW Piano - Forte / Fuzzy v=100
07-17 ODG SW 2 V-SW Piano - Forte / Dry v=100
07-18 ODG SW 3 V-SW Piano - Forte / Normal v=100
07-19 ODG SW 4 V-SW Piano - Forte / Warm v=100
07-20 ODG SW 5 V-SW Piano - Forte / Fat v=100
07-21 SW HM V-SW Forte - Harmonics v=100
07-22 ODG P Single Piano
07-23 ODG F Single Forte
07-24 ODG DT P Detune Piano
07-25 ODG DT F Detune Forte
07-26 ODG OCT P1 Dual Piano - Includes one octave upper
07-27 ODG OCT P2 Dual Piano - Includes one octave lower
07-28 ODG OCT F1 Dual Forte - Includes one octave upper
07-29 ODG OCT F2 Dual Forte - Includes one octave lower
07-30 ODG SW S/F V-SW Slow Attack / Fast Attack v=100
07-31 ODG FB 1 Dual Forte & Feedback (Harmonics - Fast)
07-32 ODG FB 2 Dual Forte & Feedback (Fundamental - Fast)
07-33 ODG FB 3 Dual Forte & Feedback (2nd Harmonics - Fast)
07-34 ODG FB 4 Dual Forte & Feedback (3rd Harmonics - Fast)
07-35 ODG FB 5 Dual Forte & Feedback (4th Harmonics - Fast)
07-36 ODG FB 6 Dual Forte & Feedback (5th Harmonics - Fast)
07-37 ODG FB 7 Dual Forte & Feedback (Harmonics - Slow)
07-38 ODG FB 8 Dual Forte & Feedback (Fundamental - Slow)
07-39 ODG FB 9 Dual Forte & Feedback (2nd Harmonics - Slow)
07-40 ODG FB 10 Dual Forte & Feedback (3rd Harmonics - Slow)
07-41 ODG FB 11 Dual Forte & Feedback (4th Harmonics - Slow)
07-42 ODG FB 12 Dual Forte & Feedback (5th Harmonics - Slow)
Distortion Guitar
07-43 DSG SW 1 V-SW Mute / Non-mute Fuzzy v=100
07-44 DSG SW 2 V-SW Mute / Non-mute Dry v=100
07-45 DSG SW 3 V-SW Mute / Non-mute Normal v=100
07-46 DSG SW 4 V-SW Mute / Non-mute Warm v=100
07-47 DSG SW 5 V-SW Mute / Non-mute Fat v=100
07-48 DSG SW HM V-SW F (Non-mute) / Harmonics v=100
07-49 DSG P Single P (Mute)
07-50 DSG F Single F (Non-mute)
07-51 DSG DT Detune F (Non-mute)
07-52 DSG +4TH 1 Dual Includes 500cent Upper
07-53 DSG +4TH 2 Dual Includes 500cent Upper
07-54 DSG -5TH 1 Dual Includes 700cent Lower
07-55 DSG -5TH 2 Dual Includes 700cent Lower
07-56 DSG OCT 1 Dual F - Includes one octave upper
07-57 DSG OCT 2 Dual F - Includes one octave upper
07-58 DSG SW S/F V-SW Slow Attack / Fast Attack
07-59 DSG FB 1 Dual Forte & Feedback (Harmonics - Fast)
07-60 DSG FB 2 Dual Forte & Feedback (Fundamental - Fast)
07-61 DSG FB 3 Dual Forte & Feedback (2nd.Harmonics - Fast)
07-62 DSG FB 4 Dual Forte & Feedback (3rd.Harmonics - Fast)
07-63 DSG FB 5 Dual Forte & Feedback (4th.Harmonics - Fast)
07-64 DSG FB 6 Dual Forte & Feedback (5th.Harmonics - Fast)
07-65 DSG FB 7 Dual Forte & Feedback (Harmonics - Slow)
07-66 DSG FB 8 Dual Forte & Feedback (Fundamental - Slow)
07-67 DSG FB 9 Dual Forte & Feedback (2nd Harmonics - Slow)
07-68 DSG FB 10 Dual Forte & Feedback (3rd Harmonics - Slow)
07-69 DSG FB 11 Dual Forte & Feedback (4th Harmonics - Slow)
07-70 DSG FB 12 Dual Forte & Feedback (5th Harmonics - Slow)
Picking Harmonics
07-71 PICKING HM Single Picking Harmonics

Many thanks to Keith for providing the SN-U110-07 card info. If you are after some more rare synth info see ... SUPER JX-10 and MKS-70 SYNTHESIZER HOMEPAGE



BACK     TOP
  SN-U110-08 - Synthesiser - Sound Chart
NOTE: These Tones already in the U-20 / U-220 and D-70's internal ROM
# Tone Name Tone Type Contents
Synthesiser
08-01 FANTASIA Dual
08-02 BELL PAD Dual
08-03 SYN CHOIR Single
08-04 BREATH VOX Dual
08-05 L CALLIOPE Dual
08-06 CALLIOPE Single
08-07 METAL HIT Dual
08-08 RICH BRASS Single
08-09 BRASTRINGS Dual
08-10 STRINGPAD1 Single
08-11 STRINGPAD2 Dual
08-12 PIZZAGOGO Dual
08-13 FANTA BELL Single
08-14 SPECT BELL Dual
08-15 BELL DRUM Dual
08-16 SYNTH HARP Single
08-17 PULSEWAVE1 Single
08-18 PULSEWAVE2 Single
08-19 PULSEWAVE3 Single
08-20 SAW WAVE 1 Single
08-21 SAW WAVE 2 Single
08-22 PIZZ Single
08-23 METAL Single
08-24 BREATH Single
08-25 NILS Single
08-26 SPECTRUM 1 Single
08-27 SPECTRUM 2 Single
08-28 N DANCE Single

* The voicing capacity or the upper range may vary with the tones you select.



BACK     TOP
  SN-U110-09 - Guitar & Keyboards - Sound Chart
NOTE: These Tones already in the U-20 / U-220 and D-70's internal ROM
# Tone Name Tone Type Contents
09-01 BRIGHT EP1 Single Bright Electric Piano
09-02 BRIGHT EP2 Detune
09-03 SYN. VOX 1 Single Synthesizer Voice
09-04 SYN. VOX 2 Single
09-05 SYN. BASS 4 Single Synthesizer Bass
09-06 SYN. BASS 5 Single
09-07 SYN. BASS 6 Single
09-08 SYN. BASS 7 Single
09-09 SYN. BASS 8 V-MIX
09-10 HEAVY EG 1 Single Heavy Electric Guitar
09-11 HEAVY EG 2 Detune
09-12 JP STRINGS Single Jupiter Strings
09-13 JP. BRASS 1 Single Jupiter Brass
09-14 JP. BRASS 2 Single
09-15 R.ORGAN 1 Dual Reed Organ
09-16 R.ORGAN 2 Dual

* The voicing capacity or the upper range may vary with the tones you select.



BACK             TOP

SN-U110-10 - Rock Drums - Sound Chart
NOTE: These Tones are NOT compatible with the D-70
10-01 Rock Drums

10-02 Electronic Drums
Note Name Tone Name   Note Name Tone Name
B1 (35) Bass Drum 1   B1 (35) Bass Drum 5
C2 (36) Bass Drum 2   C2 (36) Bass Drum 6
C#2 (37) Rim Shot   C#2 (37) Rim Shot
D2 (38) Snare Drum 1   D2 (38) Snare Drum 7 (TR-808)
D#2 (39) Stick   D#2 (39) Chimes (TR-808)
E2 (40) Snare Drum 2   E2 (40) Snare Drum 8
F2 (41) Low Tom Tom 1   F2 (41) LowTom Tom 4 (TR-808)
F#2 (42) Closed High Hat 1   F#2 (42) Closed High Hat 2 (TR-808)
G2 (43) Low Tom Tom 2   G2 (43) Low Tom Tom 5
G#2 (44) Half Open High Hat 1   G#2 (44) Closed High Hat 2 (TR-808)
A2 (45) Middle Tom Tom 1   A2 (45) Middle Tom Tom 4 (TR-808)
A#2 (46) Open High Hat 1   A#2 (46) Open High Hat 2 (TR-808)
B2 (47) Middle Tom Tom 2   B2 (47) Middle Tom Tom 5
C3 (48) High Tom Tom 1   C3 (48) High Tom Tom 4 (TR-808)
C#3 (49) Crash Cymbal   C#3 (49) Crash Cymbal
D3 (50) High Tom Tom 2   D3 (50) High Tom Tom 5
D#3 (51) Cup   D#3 (51) Ride Cymbal
E3 (52) Gong   E3 (52) Off
F3 (53) Off   F3 (53) Off
F#3 (54) Off   F#3 (54) Off
G3 (55) Off   G3 (55) Off
G#3 (56) Off   G#3 (56) Off
A3 (57) Crash Cymbal   A3 (57) Off
A#3 (58) Snare Drum 3   A#3 (58) Off
B3 (59) Off   B3 (59) Off
C4 (60) Off   C4 (60) Off
C#4 (61) Off   C#4 (61) Off
D4 (62) Off   D4 (62) Off
D#4 (63) Off   D#4 (63) Off
E4 (64) Off   E4 (64) Off
F4 (65) Off   F4 (65) Off
F#4 (66) Off   F#4 (66) Off
G4 (67) Off   G4 (67) Off
G#4 (68) Off   G#4 (68) Off
A4 (69) Off   A4 (69) Off
A#4 (70) Off   A#4 (70) Off
B4 (71) Off   B4 (71) Off
C5 (72) Off   C5 (72) Off
C#5 (73) Off   C#5 (73) Off
D5 (74) Off   D5 (74) Off
D#5 (75) Off   D#5 (75) Off
E5 (76) Off   E5 (76) Off
F5 (77) Off   F5 (77) Off
F#5 (78) Off   F#5 (78) Off
G5 (79) High Pitch Tom Tom 2   G5 (79) Off
G#5 (80) Off   G#5 (80) Off
A5 (81) High Pitch Tom Tom 1   A5 (81) Off
A#5 (82) Off   A#5 (82) Off
B5 (83) Off   B5 (83) Off
C6 (84) Bass Drum 3   C6 (84) Off
C#6 (85) Bass Drum 4   C#6 (85) Off
D6 (86) Snare Drum 4   D6 (86) Off
D#6 (87) Snare Drum 5   D#6 (87) Off
E6 (88) Snare Drum 6   E6 (88) Off
F6 (89) Low Tom Tom 3   F6 (89) Off
F#6 (90) Closed High Hat 1   F#6 (90) Off
G6 (91) Middle Tom Tom 3   G6 (91) Off
G#6 (92) Crash Cymbal   G#6 (92) Off
A6 (93) High Tom Tom 3   A6 (93) Off
A#6 (94) Cup   A#6 (94) Off
B6 (95) Off   B6 (95) Off

* All Tones are Single.
* The voicing capacity or the upper range may vary with the tones you select.



BACK       TOP
  SN-U110-11 - Sound Effects - Sound Chart
# Tone Name Tone Type Contents Split/Threshold
11-01 CREAKING Single Creaking door
11-02 DOOR Single Door closing
11-03 FOOTSTEPS Single Sound of foot steps
11-04 WATERPHONE Single Waterphone
11-05 S-STRINGS Single Suspense strings
11-06 SCREAMING Single Female scream
11-07 LAUGHING Single Male laughter
11-08 DOG Single Dog barking
11-09 WAVE Dual Wave
11-10 STREAM Dual Stream babbling
11-11 BIRD Dual Birds singing
11-12 DROP Single Drop falling
11-13 RAIN Dual Rain
11-14 THUNDER Dual Thunder
11-15 CAR DOOR Single Car door
11-16 CAR STOP Single Car brakes applied
11-17 CAR CRASH Dual Car crash
11-18 TRAIN Dual Train (passing/continuous) C5(72),C6(84)
11-19 PISTOL Single Pistol
11-20 MACHINEGUN Single Machine gun
11-21 MISSILE Dual Missile
11-22 EXPLOSION Dual Explosion
11-23 BIG fOOT Single Monster steps
11-24 DOZILLA Single Monster voice
11-25 TEL CALL Single Phone call
11-26 CHIME Single Sound of chimes
11-27 APPLAUSE Single Applause
11-28 FROM RADIO Single Music from radio
11-29 BUBBLE 1 Dual bubbles
11-30 BUBBLE 2 Dual bubbles
11-31 TOY Single Toy bell
11-32 FANTASYHIT Dual Orchestra hit
11-33 S-SET Dual Suspense set
11-34 C-SET Dual Car set

Many thanks to Keith for providing the SN-U110-11 card info. If you are after some more rare synth info see ... SUPER JX-10 and MKS-70 SYNTHESIZER HOMEPAGE



BACK     TOP
  SN-U110-12 - Sax and Trombone - Sound Chart
# Tone Name Tone Type Contents Threshold
Saxophone
12-01 SAX SW 1 V-SW Piano / Mezzo Forte v = 100
14-02 SAX SW 2 V-SW Piano / Mezzo Forte, bright v = 100
12-03 SAX SW 3 V-SW Mezzo Forte / Fortissimo v = 100
12-04 SAX SW 4 V-SW Mezzo Forte / Fortissimo, bright v = 100
12-05 SAX P 1 Single Piano, mellow
12-06 SAX P 2 Single Piano
12-07 SAX P 3 Single Piano, bright
12-08 SAX MF 1 Single Mezzo Forte
12-09 SAX MF 2 Single Mezzo Forte, bright
12-10 SAX FF Single Fortissimo
Trombone
12-11 TRB SW 1 V-SW Piano / Mezzo Forte v = 100
12-12 TRB SW 2 V-SW Mezzo Forte / Fortissimo v = 100
12-13 TRB P Single Piano
12-14 TRB MF Single Mezzo Forte
12-15 TRB FF Single Fortissimo
12-16 TP/TRB SW 1 V-SW Piano / Mezzo Forte v = 100
  12-17 TP/TRB SW 2 V-SW Mezzo Forte / Fortissimo v = 100
  12-18 TP/TRB P Single Piano
  12-19 TP/TRB MF Single Mezzo Forte
  12-20 TP/TRB FF Single Fortissimo
  * Tones marked with +12 can be played as a combination of the original sound and the same
  sound played one octave higher.

*
Paired tones allow you to obtain a rich, spacious, stereo sound, as they can be panned to
  the left and right. Tones marked as (L) are panned to the Left (L channel) and (R) to the Right
  (R Channel).



BACK     TOP
  SN-U110-13 - Super Strings (From the JV-80) - Sound Chart
# Tone Name Tone Type Contents Note
13-01 SUP STR 1 Single standard tone
13-02 SUP STR 1L Single mellow tone
13-03 SUP STR 1R Single bright tone
13-04 SUP STR 2 Detune slow attack standard tone
13-05 SUP STR 2L Single slow attack mellow tone
13-06 SUP STR 2R Single slow attack bright tone
13-07 SUP STR 3 Single fast decay standard tone
13-08 SUP STR 3L Single fast decay mellow tone
13-09 SUP STR 3R Single fast decay bright tone
13-10 SUP STR 4 Dual standard tone + tone 1 octave lower +12
13-11 SUP STR 4L Dual mellow tone + tone 1 octave lower +12
13-12 SUP STR 4R Dual bright tone + tone 1 octave lower +12



BACK     TOP
  SN-U110-14 - Super Acoustic Guitar (From the JV-80) - Sound Chart
# Tone Name Tone Type Contents
14-01 STEEL GTR1 Single Steel String
14-02 STEEL SOFT Single Steel String (Soft)
14-03 STEEL HARD Single Steel String (Hard)
14-04 STEEL GTR2 Detune Detuned Steel String
14-05 STEEL (L) Single Steel String (Left)
14-06 STEEL (R) Single Steel String (Right)
14-07 NYLON GTR1 Single Nylon String
14-08 NYLON SOFT Single Nylon String (Soft)
14-09 NYLON HARD Single Steel String (Hard)
14-10 NYLON GTR2 Detune Detuned Nylon String
14-11 NYLON (L) Single Nylon String (Left)
14-12 NYLON (R) Single Nylon String (Right)
14-13 12STRGTR1 Dual Steel String Unison
14-14 12STRGTR2 Dual Steel String + tone 1 octave higher +12
14-15 12STRGTR3 Dual Nylon String Unison
14-16 12STRGTR4 Dual Nylon String + tone 1 octave higher +12
  14-17 12STRGTR5 Dual Steel & Nylon Unison
  14-18 HARMONICS Single Harmonics
  14-19 SQUEAK Single Fret Noise
  * Tones marked with +12 can be played as a combination of the original sound and the same
  sound played one octave higher.

*
Paired tones allow you to obtain a rich, spacious, stereo sound, as they can be panned to
  the left and right. Tones marked as (L) are panned to the Left (L channel) and (R) to the Right
  (R Channel).



BACK     TOP
  SN-U110-15 - Super Brass (From the JV-80) - Sound Chart
# Tone Name Tone Type Contents
15-01 HI BRASS 1 Single trumpet section
15-02 HI BRASS 2 Dual trumpet section + tone 1 octave lower
15-03 HI BRS SF Single trumpet section sforzando
15-04 LO BRASS 1 Single trombone section
15-05 LO BRASS 2 Dual trombone section + tone 1 octave lower
15-06 LO BRASS SF Single trombone section sforzando
15-07 BRS CMB 1 Single lower key - LoBrass, upper key - Hi Brass
15-08 BRS CMB 1L Single lower key - LoBrass, upper key - Hi Brass (mellow tone)
15-09 BRS CMB 1R Single lower key - LoBrass, upper key - Hi Brass (bright tone)
15-10 BRS CMB 2 Dual BRS CMB 1 + tone 1 octave lower
15-11 BRS CMB 2L Dual BRS CMB 1L + tone 1 octave lower
15-12 BRS CMB 2R Dual BRS CMB 1R + tone 1 octave lower
15-13 BRS CMB SF Single BRS CMB 1 sforzando





SN-MV30-S1 Sound Chart
BACK   TOP
SN-MV30-01 Tone List (Rhythm Section)

SN-MV30-02 Tone List (Orchestral)
# Tone Name Tone Type Contents   # Tone Name Tone Type Contents
01 ODG SW 1 V-SW Piano/Fore fuzzy   01 OBOE 1 Single Bright tone
02 ODG SW 2 V-SW Piano/Forte Dry   02 OBOE 2 Single Normal
03 ODG SW 3 V-SW Piano/Forte Fat   03 OBOE 3 Single Mellow tone
04 ODG SW HM V-SW Piano/ Harmonics   04 OBOE 4 Detune
05 ODG P Single Piano   05 OBOE 5 Dual
06 ODG F Single Forte   06 CLARINET 1 Single Bright tone
07 ODG DT P Detune Piano   07 CLARINET 2 Single Normal
08 ODG DT F Detune Forte   08 CLARINET 3 Single Mellow tone
09 ODG OCT P1 Dual Piano w/ 1 oct upper   09 CLARINET 4 Detune
10 ODG OCT P2 Dual Piano w/ 1 oct lower   10 CLARINET 5 Dual
11 ODG OCT F1 Dual Piano w/ 1 oct upper   11 BASS CL 1 Single Normal
12 ODG OCY F2 Dual Piano w/ 1 oct lower   12 BASS CL 2 Single Mellow tone
13 ODG SW S / F V-SW Slow attack/Fast attack   13 BASS CL 3 Detune
14 ODG FB 1 Dual ForteFdck harmonics   14 BASS CL 4 Dual
15 ODG FB 2 Dual FFdck (fundamental)   15 BASSOON 1 Single Normal
16 ODG FB 3 Dual Ffdck (2nd Harmonics)   16 BASSOON 2 Single Mellow Tone
17 ODG FB 4 Dual Ffdck (3rd Harmonics)   17 BASSOON 3 Detune
18 ODG FB 5 Dual Ffdck (4th Harmonics)   18 BASSOON 4 Dual
19 ODG FB 6 Dual Ffdck (5th Harmonics)   19 SOLO HORN 1 Single Normal
20 SYN. BASS 1 Dual
  20 SOLO HORN 2 Single Mellow Tone
21 SYN. BASS 2 Single
  21 SOLO HORN 3 Detune
22 SYN. BASS 3 Single
  22 SOLO HORN 4 Dual
23 SYN. BASS 4 Detune
  23 TUBA 1 Single Normal
24 SYN. BASS 5 Detune
  24 TUBA 2 Single Mellow Tone
25 CONGA 1 V-SW Open/Mute (v=100)   25 TUBA 3 Detune
26 CONGA 2 Single
  26 TUBA 4 Dual
27 CONGA 3 Single
  27 TIMPANI 1 V-MIX
28 CONGA 4 Single
  28 TIMPANI 2 Single Forte
29 BONGO 1 Single
  29 HARP 1 Single
30 BONGO 2 Single
  30 HARP 2 Detune
31 BONGO 3 Single
  31 VLN WAVE 1 Single
32 CLAVES Single
  32 VLN WAVE 2 Detune
33 TIMBRE 1 Single
  33 VLN WAVE 3 Dual
34 TIMBRE 2 Single
  34 CELO WAVE 1 Single
35 TAMBOURINE Single
  35 CELO WAVE 2 Detune
36 WOOD BLOCK Single
  36 CELO WAVE 3 Dual
37 WHISTLE Single
  37 CB WAVE 1 Single
38 TRIANGULE Single
  38 CB WAVE 2 Detune
39 JINGLEBELL Single
  39 PIZZICATO Single
40 VIBRASLAP Single

41 CASTANET Single

LEGEND
ODG Over Drive Guitar
VLN Violin
Celo Cello
CB Contrabass
Single A single voice is played
Detune Two voices are played simultaneously with one voice tuned slightly differently
Dual Two voices are played simultaneously
V-Mix
(velocity Mix)
Two voices are played simultaneously with the volumes of the voices changed by how strongly you hit the keyboard. Based on key velocity.
V-SW
(velocity switch)
Either of two different voices is played depending on how strongly you hit a note. One voice will be heard when a note is played softly, the other voice is heard when a note is played loud. Based on key velocity.
42 MARACAS Single
43 CUICA 1 Single
44 CUICA 2 V-SW Low/high (v=100)
45 GUIRO 1 Single Long
46 GUIRO 2 Single Short
47 GUIRO 3 V-SW Long/short (v=100)
48 BERIMBAU single
49 SHEKELE single
50 STEEL DRUM single
51 LOG DRUM single
52 SCRATCH single
53 808COWBELL single
54 808CONGA 1 single
55 808CONGA 2 single


Incept Date: Wizard - 140310
Last Update: Wizard - 150914




BACK TOP -
All web site assets are
-
Hosting Provided by Big Red Roo Internet Services - Concept, Web Design and Maintenance by Wizard Graphics Australia
